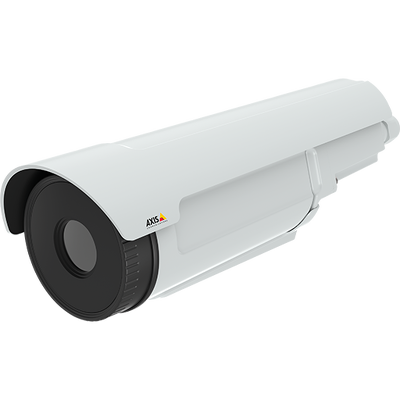

安訊士AXIS Q1942-E PT Mount 熱成像網絡攝像機Thermal Network Camera Wide VGA thermal coverage with pan/tilt flexibility

產品編號：AXIS Q1942-E PT Mount

產品價格：￥

產品簡介：安訊士AXIS Q1942-E PT Mount 熱成像網絡攝像機Thermal Network Camera Wide VGA thermal coverage with pan/tilt flexibility

在線訂購

Wide VGA thermal coverage with pan/tilt flexibility

PT mount-ready
Outstanding image contrast gives reliable detection and fast verification
Powerful performance for video analytics via ACAP applications
VGA thermal detection
Electronic image stabilization and audio support

Easy and flexible installation

AXIS Q1942-E PT Mount is easy to install and can easily be integrated with existing security systems. The following installation video shows how to mount the camera on a positioning unit.

A video analytics powerhouse

AXIS Q1942-E PT Mount’s powerful processor lets you add the strength of the market’s widest selection of video analytics solutions to your surveillance solution. For example, video analytics applications from Axis and our partners support swift and appropriate response to detected events by analyzing them, automatically dismissing non-threatening ones and instantly notifying security staff of potentially critical situations. Your staff can then view sharp, detailed footage to determine the precise nature of the threat – and act accordingly.

Sharp images

Thermal IP cameras are a powerful tool in combination with video analytics to detect intruders or other unwanted behavior in the area of interest. In order to have a reliable and efficient surveillance system, the primary object needs to be visible. Sometimes it can be hard to filter it out if the background changes a lot, for example if large cold/hot objects are moving in the scene. Thanks to the enhanced automatic gain control in AXIS Q1942-E PT Mount, the background is stable and remains almost intact, reducing the risk for false alarms. The effect of hot objects in the background is minimized, helping to improve detection. In addition, AXIS Q1942-E PT Mount preserves more image details and compensates those areas that might be overexposed. Overall, the thermal network camera offers better detection to achieve great performance of the video analytics.

AXIS Q1942-E Thermal Network Camera with Automatic Gain Control

Thermal camera without Automatic Gain Control

Low bandwidth and storage

AXIS Q1942-E PT Mount is equipped with Axis Zipstream technology, which reduces storage and bandwidth requirements, while capturing important details in full image quality. It does this by compressing less significant areas more than areas of interest. In other words, areas devoid of people or movement are compressed more. This can be particularly relevant to applications where thermal IP cameras are likely to be used, since these are often applications in areas where access is highly restricted. Moreover, the Electronic Image Stabilization (EIS) helps the camera to provide a smooth live viewing when it is mounted on instable places and vibration can be perceived as an issue.

Detection ranges

	Focal length	Viewing angle	Detection
	mm	Horizontal	Human: 1.8 x 0.5 m		Vehicle: 4 x 1.5 m
	mm	Horizontal	m	yards	m	yards
Detection (1.5 pixels on target)	7	55°	200	219	613	671
	13	28°	393	430	1205	1318
	19	19.4°	567	620	1739	1902
	35	10.7°	1028	1124	3153	3448
	60	6.2°	1774	1940	5441	5951
Recognition (6 pixels on target)	7	55°	50	55	153	168
	13	28°	98	107	301	329
	19	19.4°	142	155	435	475
	35	10.7°	257	281	788	862
	60	6.2°	444	485	1360	1488
Identification (12 pixels on target)	7	55°	25	27	77	84
	13	28°	49	54	151	165
	19	19.4°	71	78	217	238
	35	10.7°	129	141	394	431
	60	6.2°	222	243	680	744
